High Speed Gamma spectrometer with CSI(Tl) crystal
The GS-2020-CSI-MAX is a 2x2" CSI(Tl) detector with integral high speed spectrometer, this detector can count up to 100,000 cps with excellent resolution < 7%.
It connects directly to a PC and works with free open source software called Becqmoni.
Temperature Stabilised
The GS-2020-CSI-MAX detector has integral temperature sensor to compensate for temperature drift over a wide range from -40C˚ to +80C˚
PC, Mac and Android Software

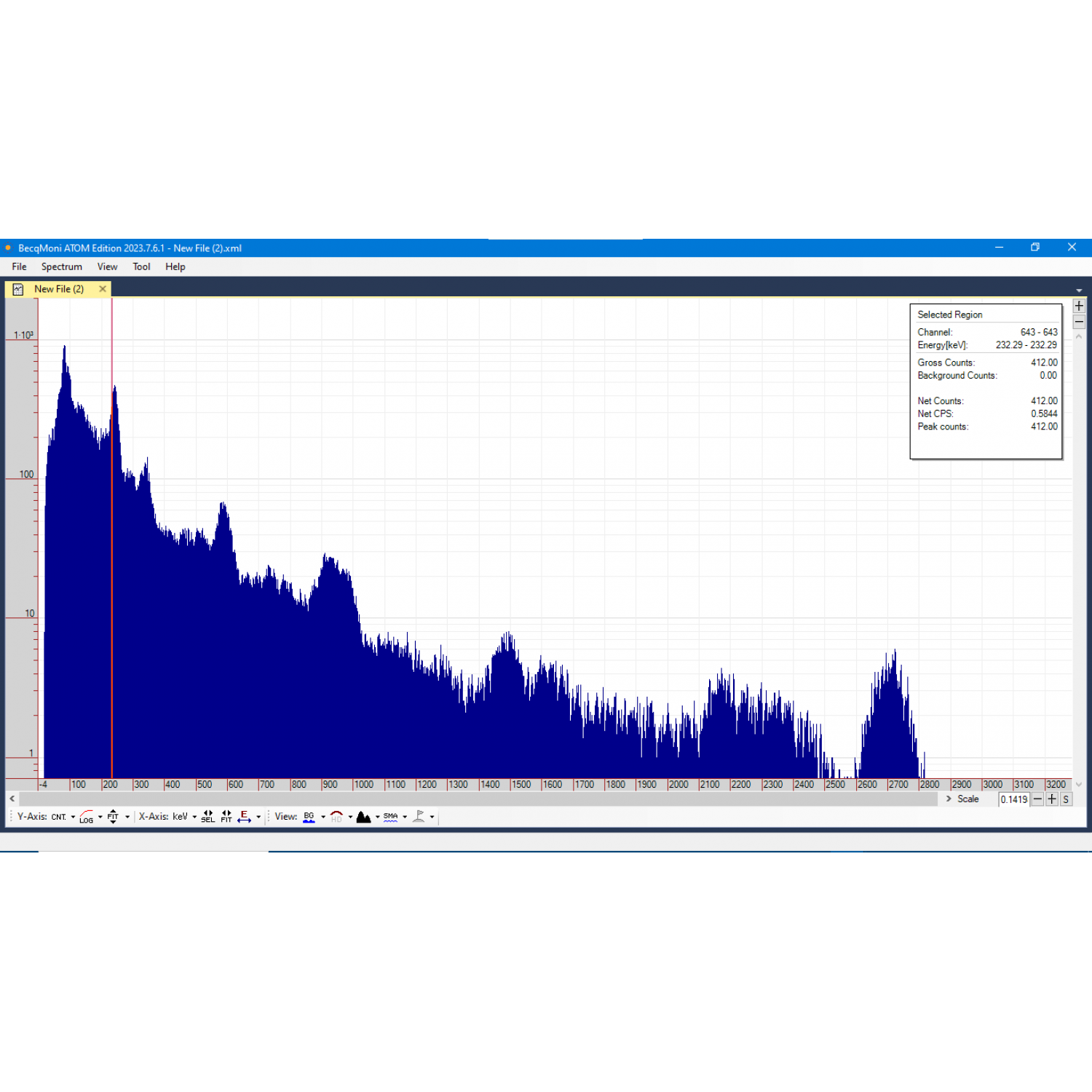

Choose between Becqmoni Atom (PC only) or Impulse (PC or Mac) software both software have unique features which may suit your experiments. The spectrometer will also work with an Android smartphone or tablet.
Software
Includes
1 x Gamma Detector with 2x2" CSI(Tl)

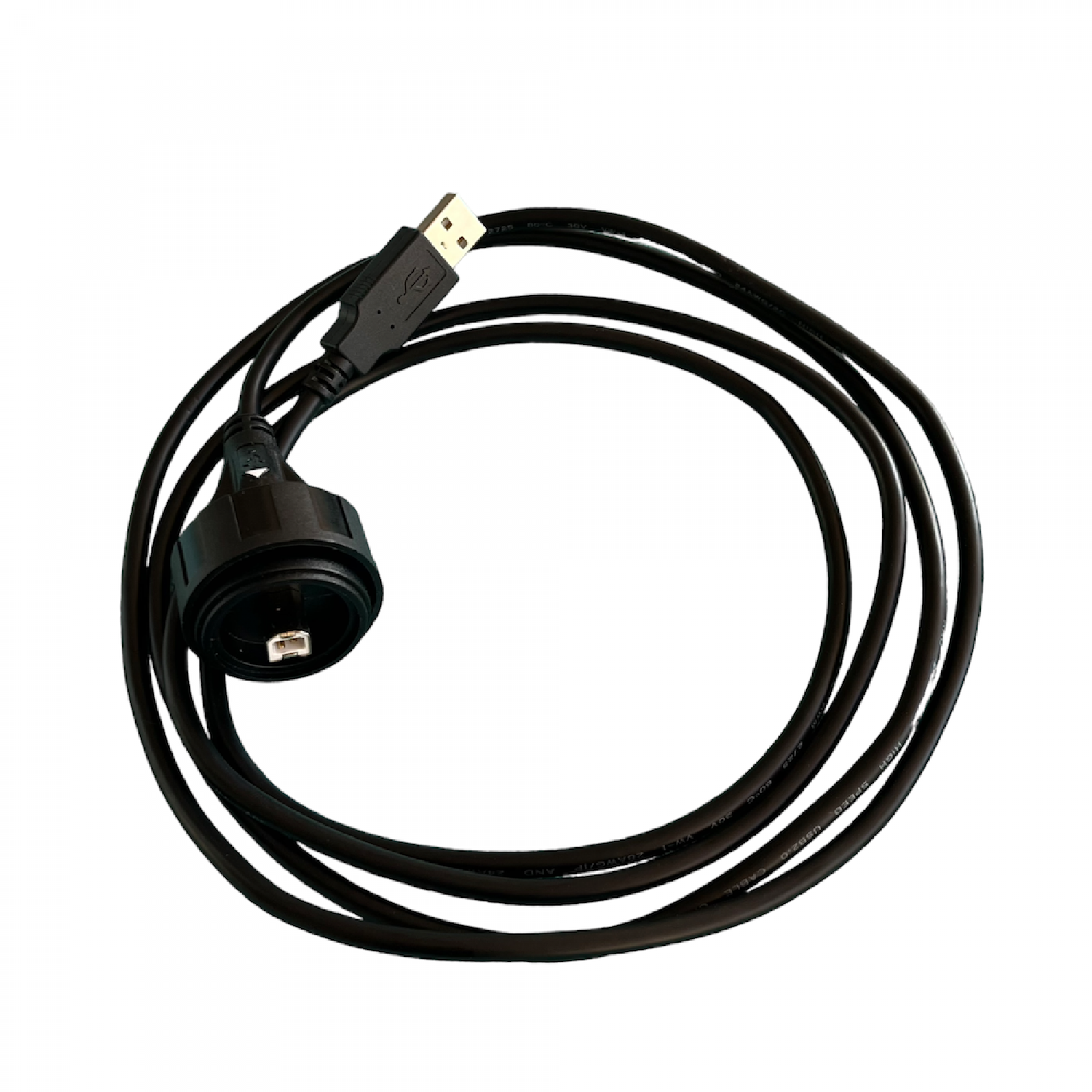

1 x Water resistant USB cable 2.0 meter
1 x Poly Propylene Instrument case
1 x Manual
Made in Australia
Specifications | Value |
---|---|
Scintillation Crystal | 52x52 mm Encapsulated CSI(Tl) |
Photomultiplier | Hamamatsu R6231 |
Housing | Aluminium 1.0 mm (+-0.2) |
Finish | White powder coat |
Dimensions | 250 x 63 mm |
Connector (on detector) | USB Type-B |
USB Cable length | 2 meter |
Power consumption | 170 mA |
Max Channels | 8192 |
Temperature stability | -40 C˚ to +80 C˚ |
Communication protocol | UART over USB |
Communication speed (rec) | 600,000 Baud |
Bias Voltage | Factory Preset |
2.0" CsI Gamma Spectrometer GS-MAX-2020-CSI
- Brand: Gammaspectacular
- Product Code: GS-2020-CSI-MAX
- Availability: 6
-
USD $4,200.00
Tags: Gamma spectrometer, csi detector, scintillation detector, usb spectrometer
Purchasing information
Register and order online
Registering an account and ordering online is the easiest and safest way to get your order processed. Payments are securely handled by PayPal and for security reasons we do not store and payment details on our server, only your name address, email, phone and details of your purchase is retained on or server.
Student Discounts
We gladly offer full time students and amateur fusioneers a once off A$50 student discount on orders over $300, the discount is a self serve, honour system, so if you are very young or very old, and don't have a full time job or lot's of money, you simply type the word student into the coupon code field when you place your order. * To redeem a student coupong, you need to create an account and log in.
Educational Institutions
Talk to us about classroom bulk purchases, why share one spectroscopy system per class, when you can have one on every workbench. We can offer formal quotations by request and are happy to cooperate with government or institutional procurement teams. Please use contact us for a quote.
