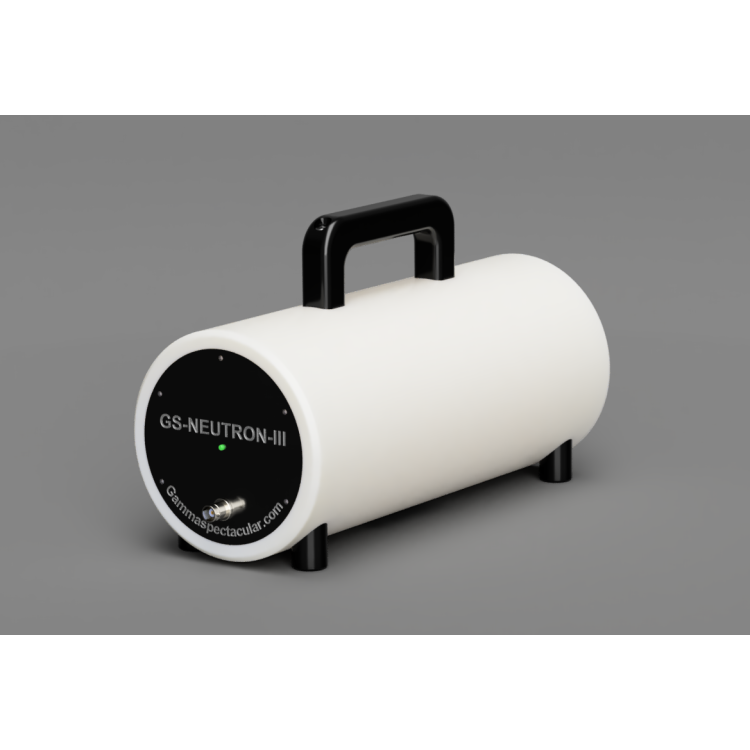

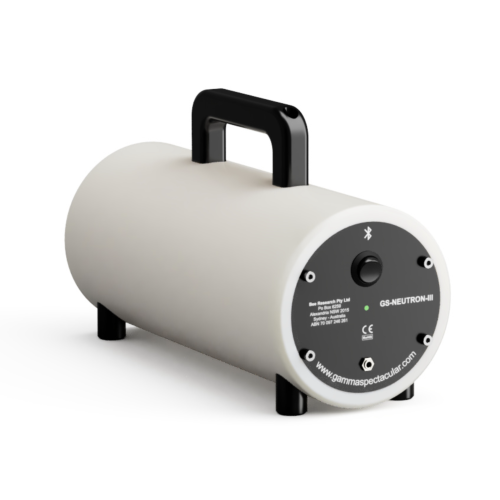

He3 Neutron Counter GS-NEUTRON-3
The GS-NEUTRON-3 has a high efficiency He3 tube with built in high voltage bias and preamplifier with bluetooth and logic signal output.
Operation is super simple, a single on/off switch activates the circuit, which is powered by a single 9 volt battery, the ultra low current circuit can power it for several weeks.

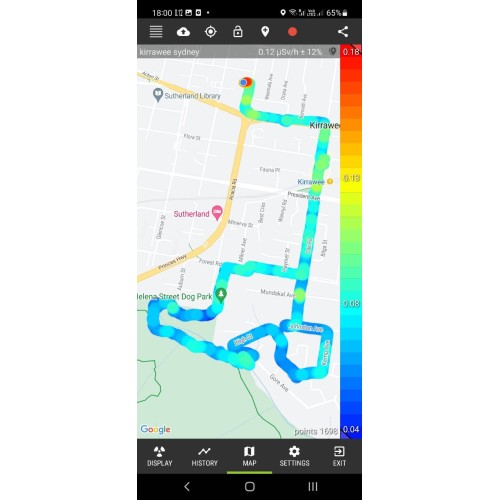

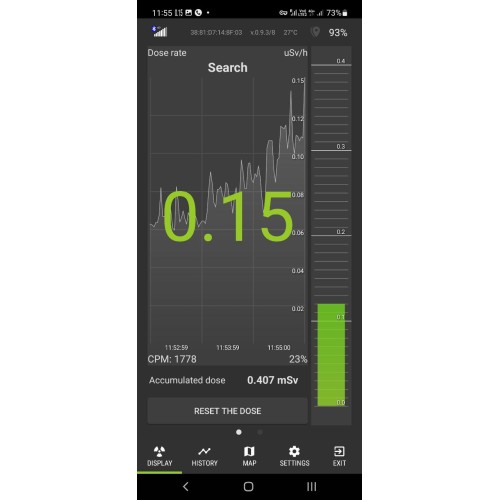

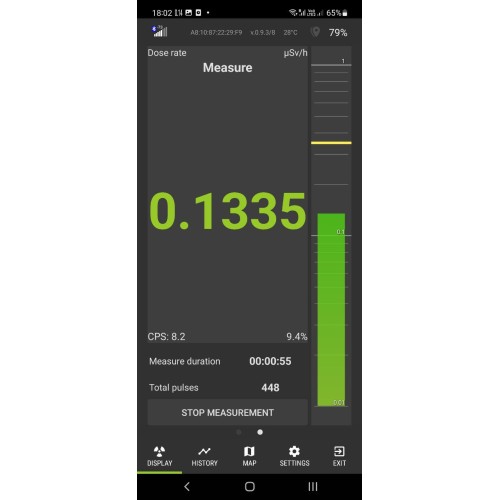

The bluetooth circuit is discoverable by the Atom Radiometer app for iPhone and Android which serves as the user interface. The detector also provides a single BNC output with a logic pulse which can be used for data logging.
iOS and Android Apps
App Downloads
Includes
1 x GS-Neutron-3
1 x BNC-BNC cable
1 x Manual
Made in Australia
| Specifications | Value |
|---|---|
| Length | 300 mm |
| Width | 130 mm |
| Height | 180 mm |
| Weight | 3.5 kg |
| Neutron Tube | High pressure He3 |
| Output | 3.3 V logic signal |
| Battery | 9V |
| Battery Life | 500 Hours |
| Moderator | HDPE |
| Efficiency | 250-260 cpm per µSv/hr |
| Calibration | At cost on request |
GS-NEUTRON-3 He3 Neutron Detector
- Brand: Gammaspectacular
- Product Code: GS-NEUTRON-III
- Availability: 6
-
USD $2,750.00
Tags: neutron detector, he3, gammaspectacular, si19n, gs-neutron-3,
