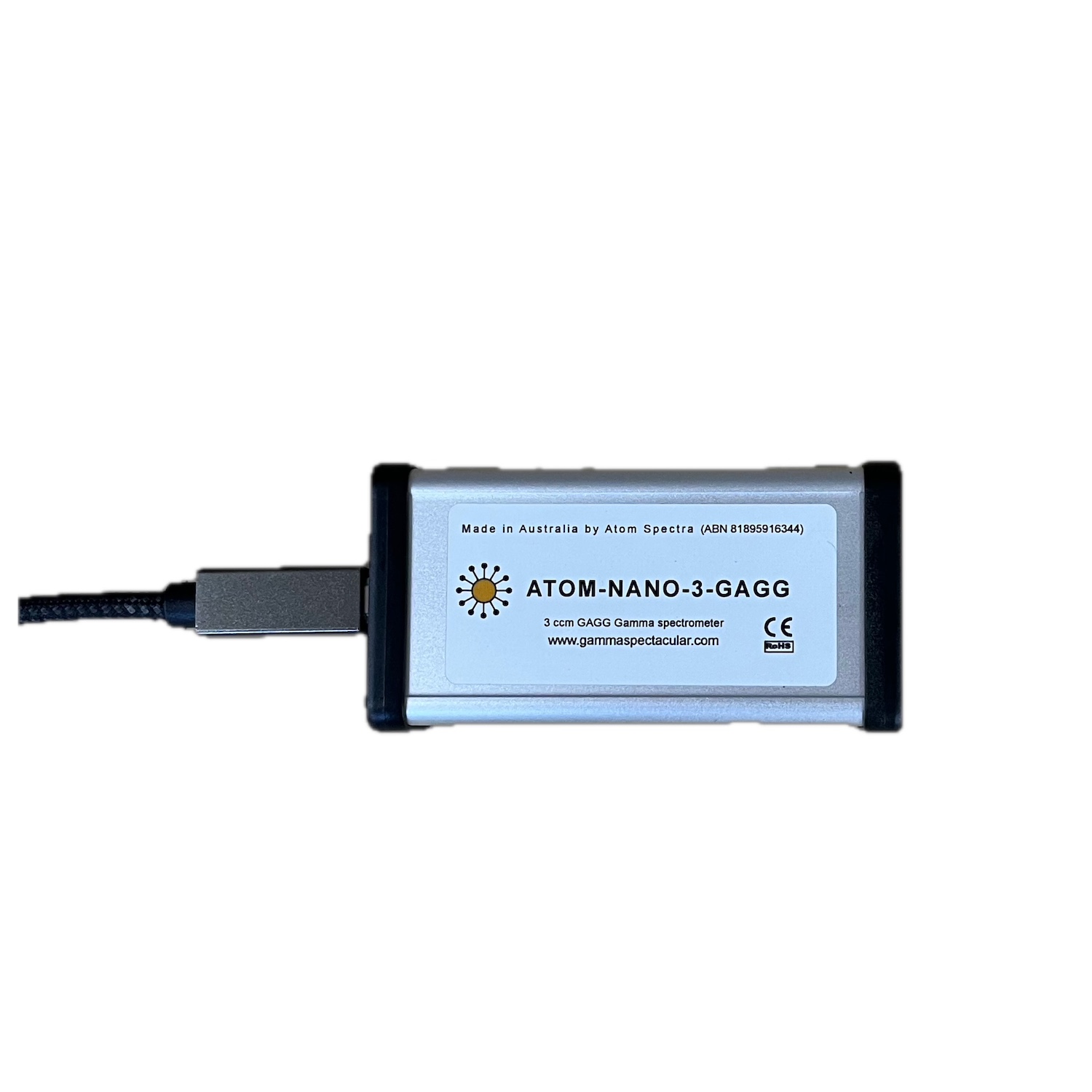

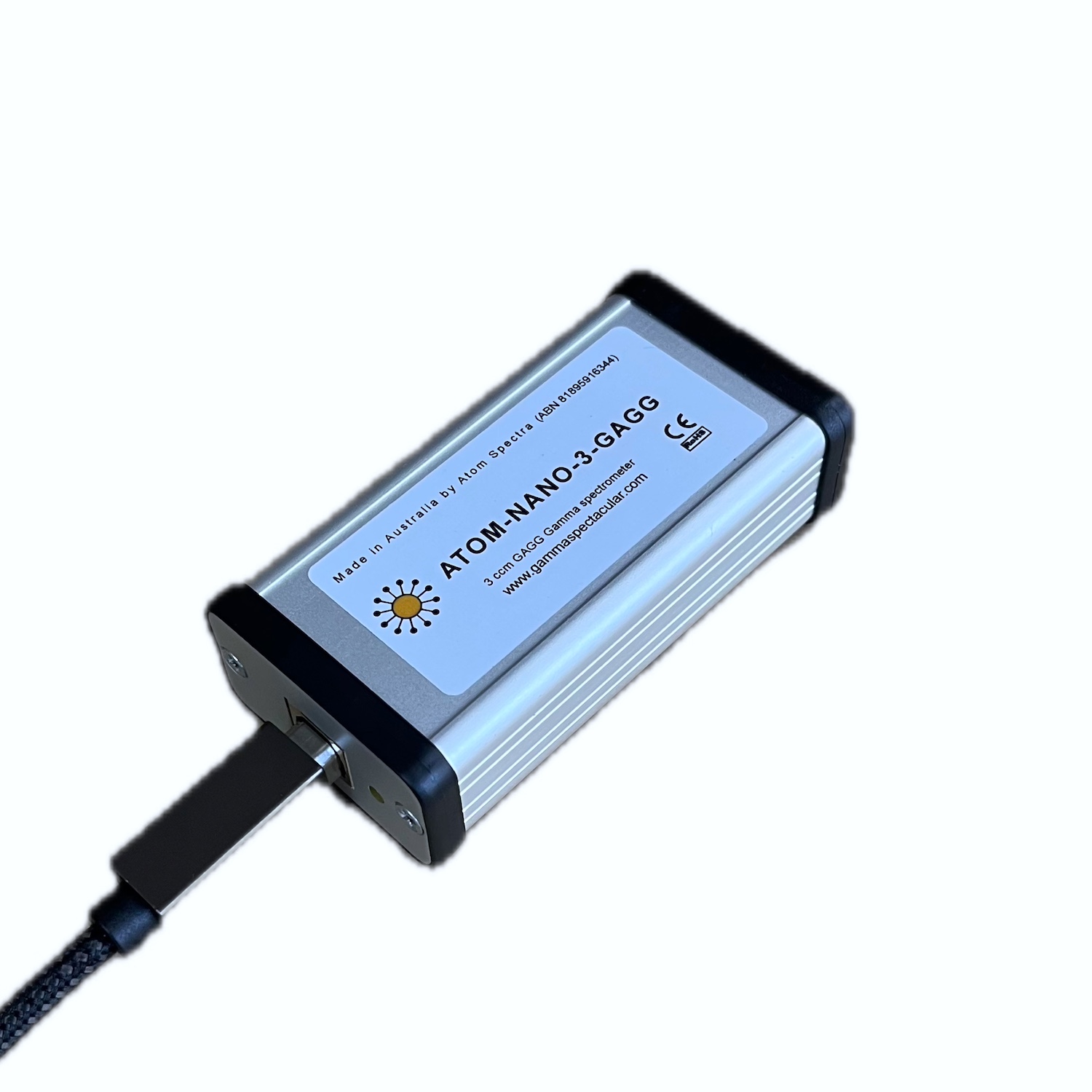

USB Gamma Spectrometer with GAGG Crystal
ATOM-NANO-GAGG offers high resolution spectrometry, in a small package with fully integrated MCA. The open source software provides a powerful interface with features like background subtraction and isotope libraries.
Temperature Stabilised
The Atom-Nano detector has integral temperature sensor to compensate for temperature drift over a wide range from -40C˚ to +80C˚
PC, Mac and Android Software
Choose between Becqmoni Atom (PC only) or ImpulseQt (PC or Mac) software both software have unique features which may suit your experiments. The spectrometer will also work with an Android smartphone or tablet.
Software
Includes
1 x ATOM-NANO-GAGG
1 x USB Type-B to Type-A cable
1 x USB Type-B to Type-C cable
1 x Instrument case
1 x Manual
Made in Australia
| Specifications | Value |
|---|---|
| Scintillation Crystal | GAGG |
| Typical resolution | 5.6% (+ - 1%) |
| Power consumption | < 1 Watt |
| Weight | 130 Gram |
| Max cps. | ~30,000 |

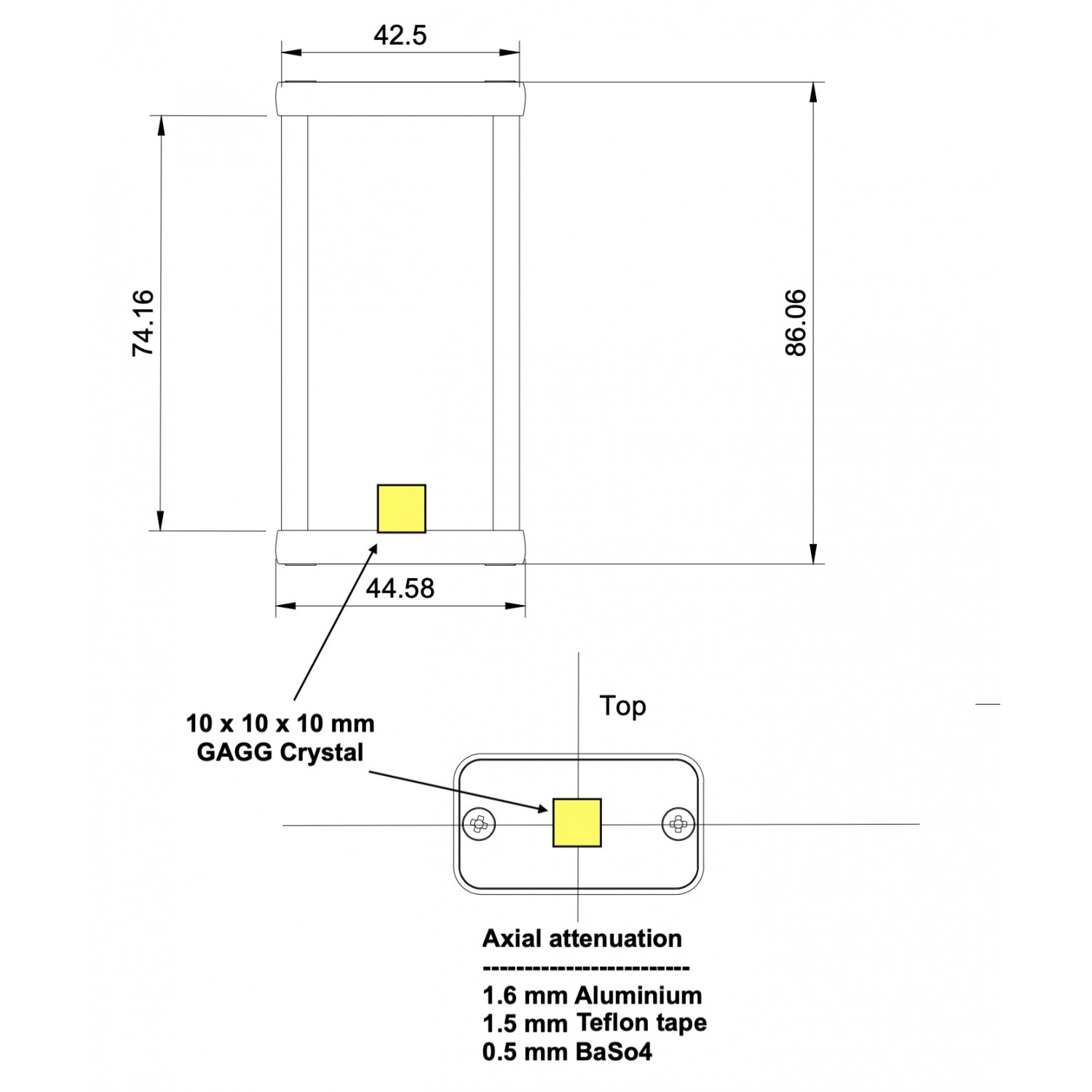

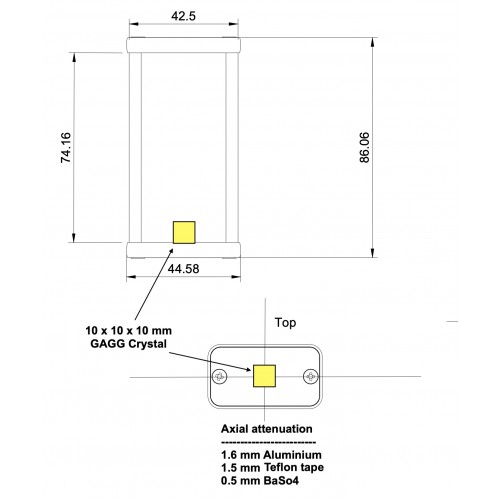

| Dimensions | 85 x 45 25 mm |
| Connector (on detector) | USB Type-B |
| Temperature operating range | -20 to +60 C˚ |
| Channels | 8192 |
| Communication speed (rec) | 600,000 Baud |
| Bias Voltage | Factory Preset |
ATOM-NANO-GAGG
- Brand: Atom-Spectra (Australia)
- Product Code: ATOM-NANO-GAGG
- Availability: Pre-Order
-
USD $1,799.00
Available Options
Tags: radiation detector, gamma detector, gammaspectacular, GS-USB-PRO, gamma spectrometer, atom, sipm, atom-nano, radiacode, gagg
