Gamma Spectrometer with 8 ccm CsI(Tl) crystal

Fully integrated USB spectrometer with fast SIPM counting circuit in a small package. The tiny spectrometer connects to a PC or Android smartphone and sends spectrum data via USB UART serial connection to the device.

ATOM-NANO-8 offers true plug and play spectrometry, it could not be much simpler. The Software which is absolutely FREE and open source provides a powerful interface with magic features like background subtraction and isotope libraries to help you identify peaks.

Temperature Stabilised

The Atom-Nano detector has integral temperature sensor to compensate for temperature drift over a wide range from -40C˚ to +80C˚

PC, Mac and Android Software

Choose between Becqmoni Atom (PC only) or Impulse (PC or Mac) software both software have unique features which may suit your experiments. The spectrometer will also work with an Android smartphone or tablet.

Software

Download Becqmoni for PC

Download Impulse Mac or PC

Download Atom-Spectra Android

Includes

1 x ATOM-NANO-8

1 x USB Type-B to Type-A cable

1 x USB Type-B to Type-C cable

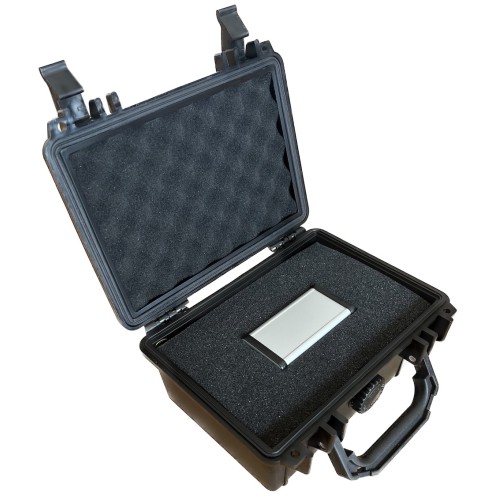

1 x Water resistant Instrument case

1 x Manual

Made in Australia

Specifications Value
Scintillation Crystal 8 ccm Csi(Tl)
Power consumption < 1 Watt
Weight 130 Gram
Max cps. ~30,000
Dimensions 85 x 45 25 mm
Connector (on detector) USB Type-B
Temperature operating range -20 to +60 C˚
Channels 8192
Communication speed (rec) 600,000 Baud
Bias Voltage Factory Preset

Write a review

Note: HTML is not translated!
    Bad           Good

ATOM-NANO-8 Gamma Spectrometer

  • Product Code: ATOM-NANO-8
  • Availability: 5
  • USD $1,499.00


Tags: radiation detector, gamma detector, gammaspectacular, GS-USB-PRO, gamma spectrometer, atom, sipm, atom-nano, radiacode,
