Gamma Spectrometer with < 3% resolution

( 1" x 1" LaBr3 Crystal)

Fully integrated USB spectrometer with fast PMT counting circuit in a convenient package. The hand held spectrometer connects to a PC or Android smartphone and sends spectrum data via USB UART serial connection to the device.

ATOM-1010-LABR offers true plug and play spectrometry, with incredible resolution. The Software which is absolutely FREE and open source provides a powerful interface with magic features like background subtraction and isotope libraries to help you identify peaks.

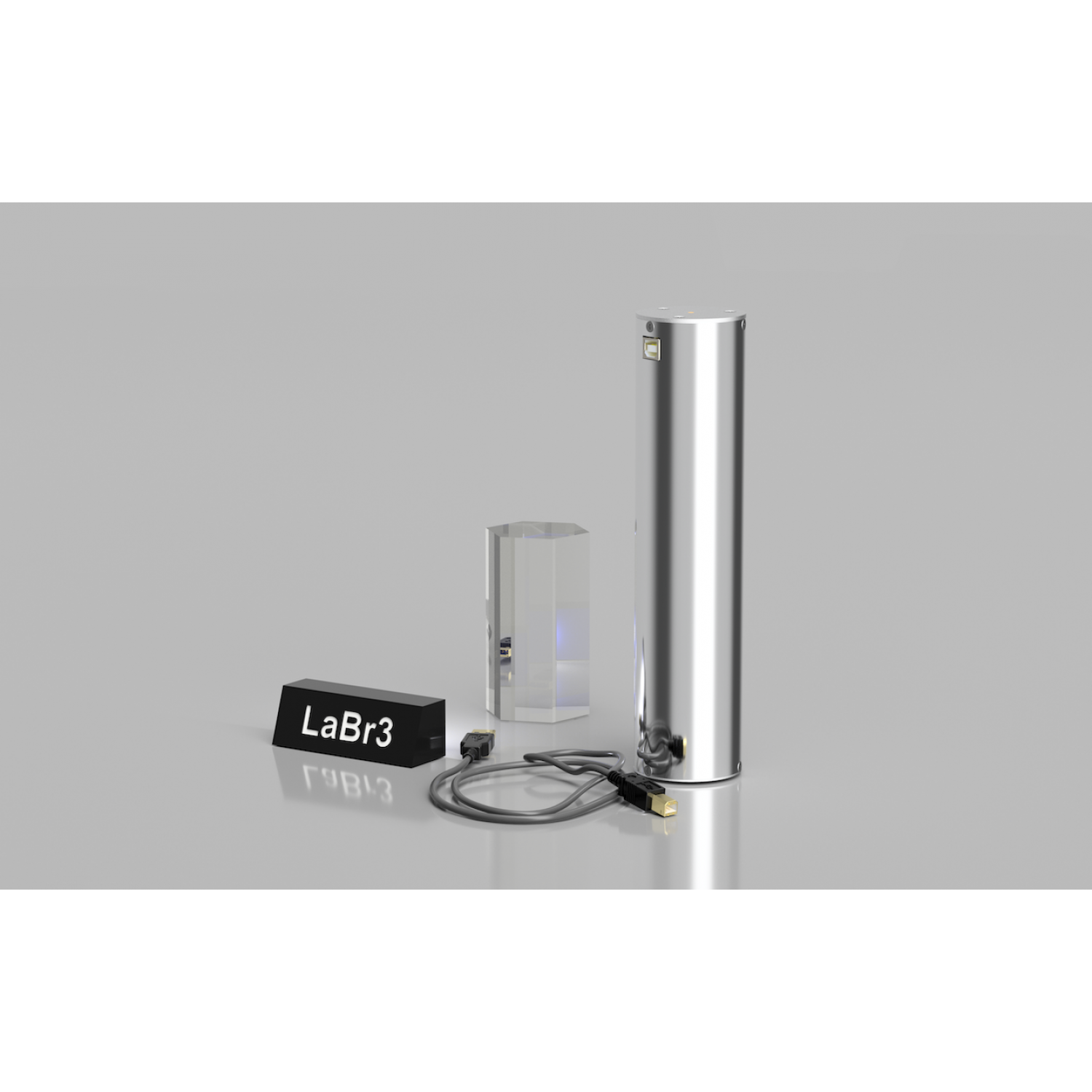

The sensitive detector and electronics are hosed in a precision machined and anodized aluminium housing with LED to indicate recording.

Temperature Stabilised

The ATOM-1010-LABR detector has integral temperature sensor to compensate for temperature drift over a wide range from -40C˚ to +80C˚

PC, Mac and Android Software

Choose between Becqmoni Atom (PC only) or Impulse (PC or Mac) software both software have unique features which may suit your experiments. The spectrometer will also work with an Android smartphone or tablet.


Download Becqmoni for PC

Download Impulse Mac or PC

Download Atom-Spectra Android


1 x ATOM-1010-LaBr

1 x USB Type-B to Type-A cable

1 x USB Type-B to Type-C cable

1 x Instrument case

1 x Manual

Made in Australia

Specifications Value
Scintillation Crystal 25.4 x 25.4 mm LaBr3
Power consumption < 1 Watt
Weight 583 Gram
Max cps. ~100,000
Dimensions 55 x 235 mm
Connector (on detector) USB Type-B
Temperature operating range -20 to +60 C˚
Channels 8192
Communication speed (rec) 600,000 Baud
Bias Voltage Factory Preset

Write a review

Note: HTML is not translated!
    Bad           Good

ATOM-1010-LABR Gamma Spectrometer

  • Product Code: ATOM-1010-LABR
  • Availability: 1
  • USD $6,500.00
